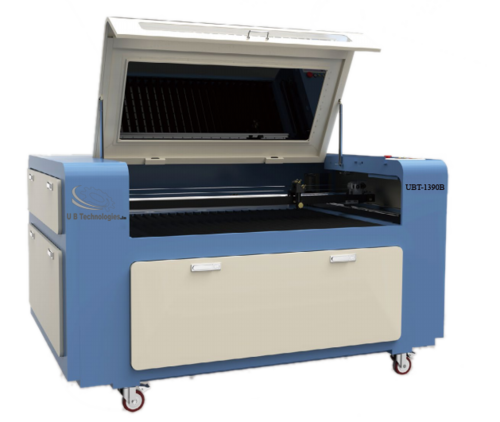

Laser Engraving & Cutting Machine

Laser Engraving & Cutting Machine
Laser Engraving & Cutting Machine
Send Inquiry
Product Code : NA
Brand Name : U B Technologies
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 3.00 - 5.00 INR
Product Description

Technical Parameters:-

  • Model:- UBT1390B
  • Working Area:- 1300 X 900MM
  • Laser Type:- Sealed CO2 laser tube
  • Laser Power:- 60W, 80W, 100W, 130W, 150W
  • Working Table:- Blade Or Honeycomb
  • Cooling Type:- Water Cooling And Protection System
  • Resolution Rate:- ±0.05MM
  • Minimum Character:- English1 X 1MM
  • Supported Graphic Formats: BMP, HPGL, PLT, DST , AI.
  • Compatible Software:- CorelDraw, AutoCAD, Photoshop
  • Working Voltage:- AC 110-220V±10% 50-60Hz
  • Working Temperature:- 0-45C
  • Working Humidity:- 5%-95%

Product Features:-

UBT1390B series machines adopt DSP digital controlling technology, Self-design laser power supply, Incorporate designed frame and structure to guarantee stable work. The newest software is matched to AutoCAD, CoreIDRAW and all other graphics processing softwares for outputing original graphics. This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource. The LCD controlling panel brings friendly computer-human interface and easy operation. The most advanced DSP controlling technology developed firstly in this field offers functions of successive, rapid and curved cutting, optimization of shortest processing path to create high efficiency. Compensation of luminance decrease is made automatically in the course of engraving to keep identical cutting in different areas. Production efficiency is greatly improved through using rapid controlling software for cutting and buffering function in high speed movement. Professional accessories suitable for various processing such as aluminum alloy honecomb bottom board of different bore diameters made of aluminum alloy, metal columns of different intervals and negative pressure adsorption device for soft materials can be provided according to customers' demands and materials, which realizes design and processing on-the-spot. The newest software is matched to AutoCAD, coreIDRAW all other graphics processing software for outputting original graphics. Advanced color management supports any color and defines engraving sequence freely to realize one time or whole output.

Applicable Industries:- Garment, Leather, Cloth toys, Computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products, Etc. Applicable Materials:- Rubber, Plastic, Cloth, Leather, Woollens, Crystal, Organic glass, Tile, Jade, Bamboo and Wooden products, Etc.
