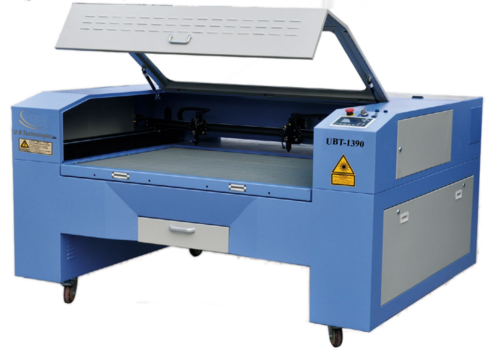

Metal And Nonmetal Laser Cutting Machine

Technical Parameters:-

• Model:- UBT1390GL Metal and Nonmetal Laser Cutting
• working Area:- 1300 X 900
• Laser Power:- 150W
• Laser Type:- Sealed co2 Laser Tube
• Working Table:- Blade Worktable
• Max Cutting Speed:- 300 MM/S
• Location Accuracy:- ±0.05MM
• Graphic Format Supporte:- BMP, PLT, DST, AI , DXF, Etc.
• Cooling Model:- Water-cooling And Protection System
• Power:- AC220V 50-60Hz 10A Max
• Operating Temperature:- 0-45C
• Operating Humidity:- 5~95 No Condensation
• Dimensions:- 1920 X 1420 X 1005 MM
• Exhausting Method:- Funnel Smoke Outlet
• Compatible Software:- CorelDraw, AutoCAD, Photoshop

Product Features:-

A mixed cutting capacity of the machine:- Stainless steel, Carbon steel, Acrylic, And wood metal and nonmetal. The machine's precision:- X / Y Leadshine servo, With high precision belt conveyors, Greatly improve the response speed and precision , Extend service life. Good stability:- Optimizing CNC control system to meet the precision parts processing, Good performance and stable, Sustainable long working hours. The good quality of cutting section:- The use of mechanical systems with moving cutting head, Cutting head with low follower plate, Cutting position remains unchanged, So that the slit smooth, Without subsequent processing section, Adapted flat or curved sheet metal cutting. The laser machine uses a sealed-off CO2 laser, Consumable parts:- Cooling water, Auxiliary gas and laser lights. The laser machine's structure simple, easy to operate, low maintenance.

Applicable Industry:- Mainly used in the advertising industry (steel and acrylic), Sheet metal industry (carbon steel), The packaging industry (die board) and other cutting.

Applicable Materials:- Acrylic, Stainless steel, Carbon steel, MDF, Die board. Typical Case:- Titanium letter, Sheet metal furniture cutting, MDF photo frame cutting, Metal crafts , Die board cutting, Etc.
